Without radiator, the volume is greatly reduced, the heat dissipation effect is excellent, and the insulation and mechanical properties are good.Aluminium PCB Stack Up details as the drawing. Suitable for SMT technology of power module surface mounting.
Compared with other materials, PCB material has incomparable advantages. Generally, aluminum plate can be used, and copper plate can be used (copper plate can provide better thermal conductivity), which is suitable for drilling, punching, cutting and other conventional machining. Metal base is the support component of aluminum substrate, which requires high thermal conductivity. This technology is used in the thermal insulation layer of High Performance PCB aluminum substrate, such as IMS-H01, IMS-H02 and LED-0601, which makes them have excellent thermal conductivity and high strength electrical insulation performance. It has small thermal resistance, excellent viscoelastic performance, thermal aging resistance, and can withstand mechanical and thermal stress. It is generally composed of special polymer filled with special ceramics. Thermal insulation layer is the core technology of PCB aluminum substrate. Generally, the circuit layer requires a large current carrying capacity, so thick copper foil should be used, with a thickness of 35 μ m ~ 280 μ M. copper foil) is usually etched to form printed circuit, so that the components of components are connected with each other. PCB aluminum substrate is composed of circuit layer, thermal insulation layer and metal base layer circuit layer (i.e. Aluminum based copper clad laminates and traditional epoxy glass cloth laminates Thickness: 0.003 "to 0.006" inch is the core technology of aluminum based copper clad laminate, which has obtained UL certification.ģ) Base: is a metal substrate, generally aluminum or optional copper. PCB aluminum based copper clad laminate is a kind of metal circuit board material, which is composed of copper foil, thermal insulation layer and metal substrateġ) Circuit layer: equivalent to common PCB copper clad laminate, circuit copper foil thickness from 1oz to 10oz.Ģ) Insulating layer: insulating layer is a layer of low thermal resistance thermal insulation material. The PCB used for other equipment or electrical appliances is glass fiber board. In the past, the material of PCB is glass fiber, but because the heat of LED is bigger, the PCB used for LED lamps is generally aluminum Substrate, which can conduct heat quickly.

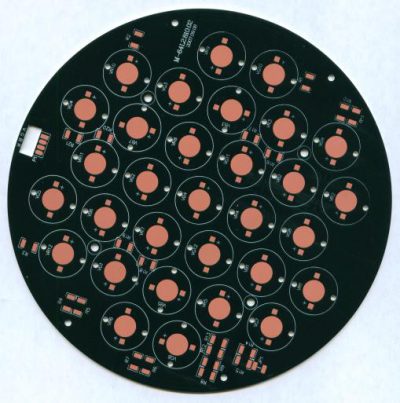

LED PCB is Aluminum PCB, which is also the meaning of printed circuit board, but the material of PCB is aluminum alloy.
